The information architectural framework for the NRCSv application is divided into two functional categories consisting of the Application Architecture and the Network Architecture. The application architecture is key to the NRCSv software, therefore greater detail will be provided for the application architecture category. Future Federal Government plans specify that the NRCSv application will migrate to and reside within either a DOI or NPS Cloud network architectural framework. As such, this document describes the “as is” network architecture and specifics relevant to the NRCSv. Future updates to this document will provide details relative to the DOI/NPS Cloud network architecture upon deployment to the Cloud.

The application architecture refers to the type of application processing middleware that processes the NRCSv application as well as the specific design and organization of the information components (core code base) that make up the NRCSv application. The following sections will discuss each of these three application architecture areas.

To process the multiple code components (pages, templates, included files, scripts, database queries, etc.) for this web application, a processing middleware is required. The NRCSv application uses Adobe® ColdFusion™ Standard Version 10 installed on a Windows Server 2008 R2 Enterprise edition software consisting of Dual Core 2.4 Ghz processors on a 64-bit machine. Additionally, the ColdFusion software connects to the Volungeer.gov GSS Microsoft® SQL Server™ 2012 edition database through native and ODBC data connectors (see details in Section 2—Data Structures below). Important note about ColdFusion Version 10 ¹.

The NRCSv application is a collection of multiple ColdFusion templates that perform intended functions as specified in the application design. Templates are considered the core code base for the software application. Each of these templates can be abstracted in terms of a contained set of programming instructions that are executed when the template is accessed by a web browser or when the template is called/requested by another template or an AJAX synchronous scrip call. In general terms, each template involves three main component areas when processing:

1. Component 1: The code Template file with instructions about what function(s) to execute.
2. Component 2: The global variables file (Application.cfm) which includes key global application variables, including user authentication.
3. Component 3: The included templates and/or other files that provide information and rules to help the Template (Component 1) perform its function(s).

Figure #1 and Table #1 below detail the typical application architecture core code design used in the NRCSv application. In Table #1, a sample scenario depicting a user login is demonstrated to explain the interaction of the application design components. Note that this is a stylized simple-case scenario; this type of scenario is routinely common throughout the application.

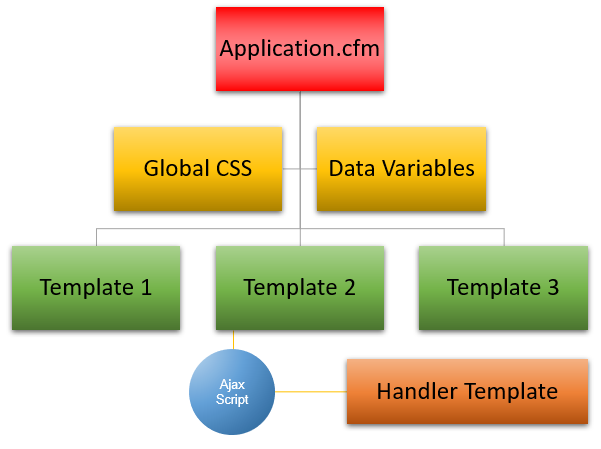

Figure #1: Core Code Processing/Functionality

Table #1: Core Code Details

Figure #1 Item	Description
Application.cfm	Processed File: global variable file for NRCSv application; controls data source, session variables, error handling, system encryption key, and application security filtering.
Global CSS	Included File: specifies style and display formatting rules.
Data Variables	Included File(s): may be more than one file; checks if user is authenticated and sets authenticated user-specific variables; may include database query results in arrays, structures, session variables, QoQ (query of query) and JavaScript files.
Template 1--3	Generated File(s): dynamically generated ColdFusion files based on the Application.cfm, Global CSS, and Data Variables files and on the core cfm code in the template. This can include multiple templates based on the user interface and function being performed.
Ajax Script	Semi Generated Script(s): AJAX scripts which run asynchronously on the server and/or client machine, generally called on a user click/action, these include core functional script calls to ColdFusion templates. Most AJAX scripts are partially generated via ColdFusion for variable/parameter handling.
Handler Template	Generated Files(s): these are specialized ColdFusion template files which perform some specialized function. Generally, handler templates do NOT stand on their own, but rather perform some function and return the results to the calling application. Generated files are generally in HTML 5.0.
Typical Application Scenario: User Login Example
User navigates to the Login page (template 1) Application.cfm sets the data source as well as other variables and the application name (VT) The Global CSS file sets the style and formatting for page display The Data Variables file checks to see if the user is already authenticated: If user is authenticated, user is redirected to the intended NRCSv page (Template 3) If user is NOT authenticated, user is presented with username and password login fields (Template 1) Template 1 is the user login page for non-authenticated users. The template checks to see if the connection is an https (secure) connection, if not, redirected to the https login page. User is required to enter username and password. Upon submission redirected to Template 2. AJAX scripts call helper templates to check for login integrity and prevent cross-site scripting attacks. Template 2 processes (validates) the username and password based on the parameters specified in the Application.cfm file (data source). If the username and password result in one and only one record, the Data Variables page is updated with authenticated user-specific session variables and the user is redirected to the intended NRCSv page (Template 3). If the username and password result in anything other than one and only one record, the user is redirected back to Template 1, the Data Variables page sets an internal counter, and the user is allowed two more tries (based on the internal counter) entering a correct username and password combination. After 3 unsuccessful attempts, the Data Variables file is updated with a “restriction” variable and the user is prohibited within the application for a given period. The process is complete.

As is standard in web application software, the core component files (templates, etc.) are organized in logical folder groupings within a web-accessible directory structure on the web server. For the NRCSv application, file structure follows a common organization that is utilized across all Volunteer.gov GSS software applications. Figure #2 and Table #2 detail this core code organization for the NRCSv application.

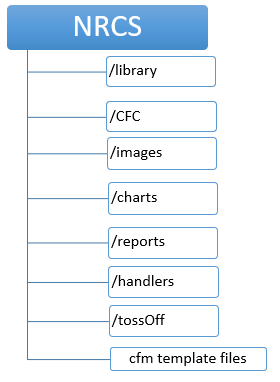

Figure #2: Directory Structure

Table #2: Code Organization Details

Figure #2 Folder	Description
NRCS	This is the application top directory folder that contains the primary code files for the NRCSv application. Note that there are other internal ColdFusion processing files which are outside this folder and which are shared by all applications on the Volunteer.gov server
/library	This is an application sub directory folder that contains any required JavaScript files and other external connector files (Google maps keys/APIs, search engines, etc.). Generally, files within the /library are script files, text files, or cfm files. Note: we do not include CSS files in the library; these are placed in the top web folder for accessibility to templates.
/cfc	This is an application sub directory folder that contains coldfusion component files (CFC). CFC files allow for complex functions and or re-usable encapsulated code such as API dynamics, Java connectors, database connectors, and other programming language interfaces.
/images	This is an application sub directory folder that contains images used throughout the NRCSv application. Note: some images may be external to this application as specified in the Global CSS file. Generally, we try to avoid external images because they can cause slower page performance.
/charts	This is an application sub directory folder that contains interactive charts generated by the ColdFusion chart engine or 3rd-party charting applications. This directory also contains custom data charting applications developed by Keith Stewart. These charting applications generally interface with the /cfc directory to generate specified charts.
/reports	This is an application sub directory folder that contains generated reports as specified by the NRCSv customer. These reports are geneerated real-time and placed in this directory for broadcast as per administrator rules.
/handlers	This is an application sub directory folder that contains key functional “helper” code files/templates which perform specialized queries, display, calculations, etc. Normally, these code files could be contained in their parent templates, but because they may involve complex processes and processes that are used by multiple templates, it is a common programming practice to separate “reusable code blocks” into individual files for easier use and access.
/tossOff	This is an application sub directory folder that serves as a detention directory for unauthorized users or detected malicious behavior. Once a user is placed in the tossOff detention directory, NO other application resources are available to the user. Session variables and IP address bind detainees to the directory for 365 days or until a "release" action by a super user.
cfm template files	These are the actual ColdFusion template files that are the core code for the NRCSv software application. These files reside in the top directory folder (NRCSv). NOTE: there are two critical files and two sub-critical files which are always within this directory: Critical Files (always processed): Application.cfm: The global variables file. This file is processed every time a cfm file is accessed; this sets the application variables required for the application to function. vtStyle.css: linked file which includes all the CSS rules for the application. The global CSS file is CSS3 compliant. Sub-Critical Files (processed when called): validateMe.cfm: Included file, checks to validate if a user is authenticated or not, processed for every page requiring an authenticated user. If authentication fails, all subsequent processing is aborted and the user is redirected to https login page. The validateMe.cfm file contains user specific parameters and user agent parameters. NOTE: in general, to speed up cfm processing, we convert locked session variables to unlocked template variables in this file on a template-by-template basis for performance enhancement. This file is processed only when called. The following user-specific parameters are converted from a session structure (session.GateKeeper.x where x is the session variable) to template variables so that they can be called/accessed without setting a CFLOCK for each request. AL (user access level) ST (user State location from address) myAgency (user Agency, in this case NRCS) WS (a string variable with all user workstations. This can be a comma separated list for more than 1 workstation.) VTID (user unique ID) MyPartner (user Agency, in this case NRCS) FN (user first name) LN (user last name) thisuser (unique user ID) In addition to the above files, this directory includes all the other ColdFusion templates required to perform the NRCSv application functions. On rare occasions, we may create additional sub-folders for cfm templates when there is a clear advantage to segregating functionality within a sub-folder.

As of 21 February 2016, the NRCSv software application resides on a DOI/IBC server in the Reston Data Center. For a detailed Network Architecture Diagram, consult the appropriate DOI/IBC Network Operations Administrator. For security, Network Architecture is NOT presented as part of this document. Furthermore, it is anticipated that in 2016, the NRCSv software application will be deployed with the DOI/NPS Cloud framework. Details of the DOI/NPS Cloud framework should be directed to the appropriate DOI/NPS Cloud Network administrator. For the purposes of the NRCSv application, it should be noted that the current DOI/IBC strategy is to force all Network traffic from the IBC Netscaler to the Volunteer.gov server via port 443 so that all traffic is via an encrypted SSL layer. The IBC also manages the SSL Certificate for the Volunteer.gov server where the NRCSv application is hosted.

The following sections provide basic details about the core application logic. This is for the benefit of the support and development teams who are responsible for managing the application. The following sections are listed based on key functional application areas.

Users are authenticated based on their username and password combination. Privileges are assigned based on their user level with National Administrators being the top-level application managers and volunteers being the base level. A brief listing of responsibilities follows:

National Administrators: responsible for managing all volunteers and groups, managing work activities, managing administrators, viewing coordinator emails, managing offices, and also viewing MLRA reports, Year-End reports, and Volunteers with 4000+ hours of accumulated time.

State Administrators: responsible for volunteers and volunteer groups within their respective state (state is designated by their administrator).

Area Administrators: responsible for volunteers and volunteer groups within their respective areas (areas are designated by their administrators).

Office Administrators: responsible for volunteers and volunteer groups within their respective office list (offices lists are designated by their administrator).

Volunteers: responsible for entering their own time, printing/downloading their record of time, and maintaining their own contact information

Group Volunteers: group volunteers do not have access to the system; they are entered by administrators and assigned time.

Based on the above user categories, when a user is authenticated, they are directed to the main portal page based on the following strategy:

User Level	Redirection
Administrators	admin.cfm
Volunteers	vol.cfm

All administrative functions are available from the admin page and are restricted based on the user level. Volunteers can only enter time and manage their contact information.

To make the process of user authentication efficient, all application pages (except the home page/login page: index.cfm) include the validateMe.cfm include template. This template checks for the existence of a session variable in the GateKeeper session structure. The GateKeeper session structure parameters are set upon a successful login. The validateMe page runs a check for authentication, if passed, it then sets a CF-Lock (ColdFusion machine lock of multithreading) and converts the GateKeeper session variables to page variables so that a new CF-Lock does not have to be set every time the app requests a GateKeeper variable (VTID, Name, State, User Level, etc.). This allows for the segregation of appropriate access points within the admin page; basically, administrators only see or are allowed to do what their pre-defined user level allows.

If a user is unable to authenticate (after 3 unsuccessful login attempts), they are redirected to the /tossOff subdirectory and a session variable is set which disallows them to login again. This session variable is set for 24 hours but can be reset by closing all browser instances and starting the web browser again. We do NOT disclose this to users, but this functionality is available for support teams as needed.

Reporting is roles-based as determined by a users access level. In most reporting and other administrative functions, the NRCSv application uses asynchronous AJAX calls generally to CFM template files in the /handlers subdirectory to accomplish reporting. Most of these reports are numbered based on the report category being accessed. For example, there are a total of 6 standard reports (configurable with dates and offices and other parameters) which all use AJAX calls to their respective handler file (R01, R02, R03, etc.). There are a total of 8 custom reports which follow the same logic but are more customizable than the standard reports. All reports use AJAX to call their respective handler files (C01, C02, C03, etc.).

Furthermore, each report (standard and custom) includes a feature which allows authenticated users to download the report into an Excel file format. These excel files are created in real-time and are NOT stored on the server. The user is required to either save or open the Excel file on their own client. The Excel files are generated based on the ColdFusion CFDOCUMENT strategy. Most Excel generation files include the naming convention xxx2XLS.cfm in their name structure.

When a user has generated a custom report, they are also able to save their custom report to their “Favorites”. This functionality inserts the report type together with their report variables and parameters to the MyFav table along with the user’s unique VTID. The reports are then accessed by appending the variables to the report type via URL variables.

National Administrators are also authorized to perform the following tasks on the NRCSv application:

• Manage Offices: Archive or un-archive offices, add new offices, move offices to other states, change office designations to National/State/MLRA, and edit any address information about offices. Because the NRCS supplies the OIP designation for each office, it is their responsibility to ensure the integrity of OIP numbering. There are no provisions in the application to authenticate OIP numbers and Administrators are prohibited from creating duplicate OIPs.
• Manage Coordinator Email: Manage/Edit/Create email addresses for each State Coordinator.
• View Administrators: View and download to Excel all administrators and access administrators to manage their accounts.
• Manage Work Activities: View/Edit/Create work activities. These work activities will be visible in the time sheet drop down work activity lists for all users. Note: for system integrity, we do not allow for the deletion of work activities. If a work activity is no longer needed, it can be set to NOT visible in the manage work activities area.
• Verify Time: National Administrators can verify or un-verify ANY time entry in the system.
• Manage Groups: Create new groups, manage existing groups, add groups members, and enter group time. The Groups administrative functions are covered in a separate design document available only to administrators. A sample screen of the Groups Time management portal is displayed in Figure #3 below.

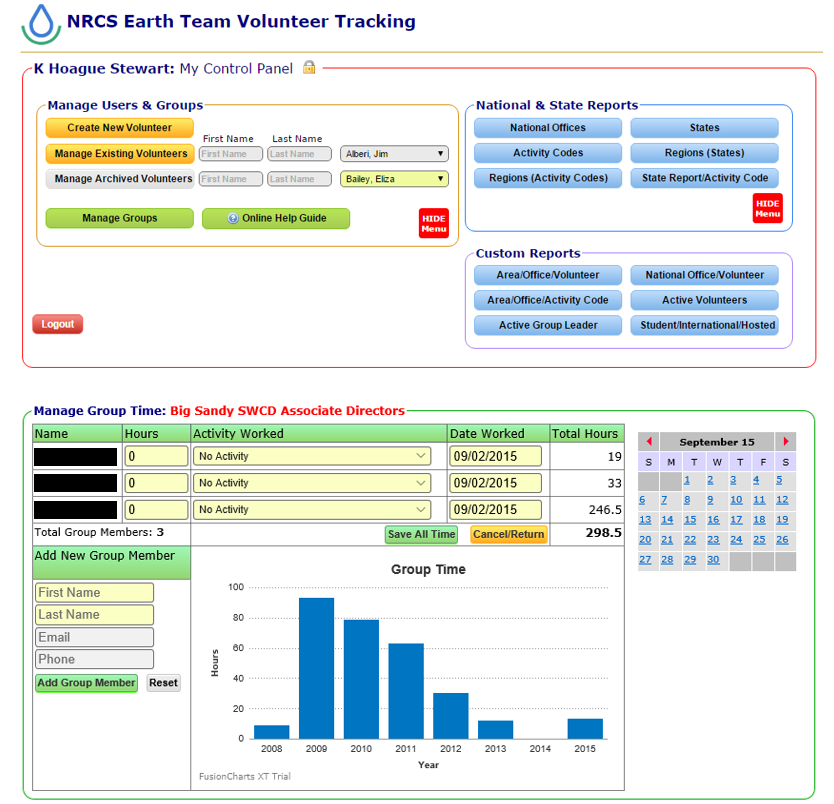

Figure #3: National Administrators—Group Time Management

The NRCSv application uses several JavaScript files for presentation control and AJAX initiation. These files are located within the /library subdirectory. There is also a sortable.js file which allows for the sorting of a data table based on a user click if the table is tagged with the controlling CSS class (sortable). Section 5 of this document lists the basic function of each JavaScript file and other /library files.

In addition, the home page (index.cfm) of the NRCSv application includes an interactive USA map with the number of total volunteers included for each state. The map is in the /charts subdirectory/. This map is generated from a FusionCharts™ JavaScript component and populated dynamically from a nightly volunteer query (SCHHours.cfm). The data table below the USA map is also generated from this scheduled file (SCHHours.cfm). The controlling FusionCharts scripts and map engine is shared with other applications on Volunteer.gov and is included in the fusioncharts/ folder which is above the top-level NRCSv folder within the REDACTED web server directory. Control of the USA map is via the fusion charts .JS include in the <head> section of the index file.

Additionally, within the Group Time templates (addTime.cfm), there are included FusionChart bar charts indicating the total hours worked for each group per year. Again, these charts are controlled via the FusionChart included JavaScript files located in the <head> section of the admin.cfm

The authentication process on the NRCSv application occurs via a username and password combination authentication process where passwords are encrypted via a SHA 512 HASH and the login form is always processed via port 443 via SSL certificate. The specific process is as follows:

1. index.cfm login page (SSL username and Password required)
2. validation of username and password in the nValidate.cfm template

In the form field from the index.cfm page to the nValidate.cfm page, the NRCSv application includes a form field named VGUUID and a value of the unique ColdFusion CFTOKEN value which is generated per user session. The CFTOKEN is encrypted via AES and the stored encryption key (REDACTED variable). When the form is submitted, the nValidate.cfm page then decrypts the VGUUID value and compares it to a generated CFTOKEN. If there is a match, the processing is allowed to proceed. If there is NOT a match, the user agent is then redirected to the sorry.cfm page and processing is stopped. This VGUUID is used as a means of ensuring that the login attempt originated from the index.cfm page on the server. This also prevents cross site scripting and/or hijacking of the login process.

The NRCSv application includes a Password Reset function whereby a user can reset their password. The process works as follows:

1. On the home page (index.cfm), user clicks the Reset button and follows the instructions
2. The user is redirected to the NRCS.cfm reset page. The user must enter their email address or username in the field provided.
3. A unique encrypted VGUUID form variable is created (see 2.5 above), and the username entered by the user is passed to the checkReset.cfm template via SSL. If the decrypted VGUUID does not match the CFTOKEN value, the processing is aborted and the user agent is directed to the sorry.cfm page.
4. If the username entered matches ONE and ONLY ONE username in the VT_Users table, and a password reset email is generated and sent to the user account email address.
5. The temporary password is set in the database with a 2-hour expiration. If the user fails to reset their password within the 2-hour time limit, the user must again request a password reset as above.
6. The password reset email includes a temporary password that is encrypted along with instructions for resetting the password.

The NRCSv application is primarily a data-driven software user interface and management tool. Key functionality includes role-based content and user management allocated to two broad categories of users including Federal Government Managers and Non-Federal Government Volunteers. For the NRCSv application, Federal Government Managers are primarily responsible for entering Non-Federal Volunteer time; there is limited Non-Federal Government access to this application.

Within the Federal Managers roles, there are several levels of role-based users and associated functions. Within the Non-Federal Volunteer users, role-based functions are limited to entering time and printing/saving a record of time only. This non-federal volunteer role applies to individuals; specifically, an individual non-federal volunteer can only manage their own time and profile record. Figure # 4 and shows a high-level relationship among the users and primary roles.

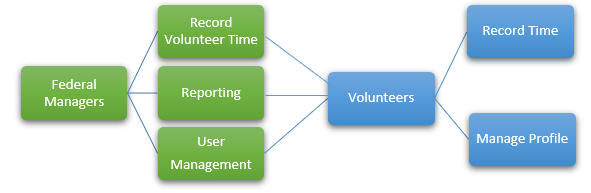

Figure #4: Generalized Roles-Based Data Structure

Expanding from the Generalized Roles-Based Data Structure (Figure #4), a more detailed relationship view of the roles within the NRCSv application is presented in Figure #5 below (Detailed Roles-Based Functions). These functions are key to designing a manageable and productive database structure.

Figure 5: Detailed Roles-Based Data Structure

(1) NATIONAL ADMINISTRATORS
(2) State Administrators Manage users, volunteers, and groups within their designated state. Restrictions: managing offices, managing coordinator email, viewing administrators, managing work activities, viewing volunteer 4000-hour reports, viewing Year-End reports, viewing MLRA Office/Volunteer reports.	(3) Area Administrators Manage users, volunteers and groups within their designated area based on office codes (OIP). Restrictions: managing offices, managing coordinator email, viewing administrators, managing work activities, viewing volunteer 4000-hour reports, viewing Year-End reports, viewing MLRA Office/Volunteer reports.
(4) Office Administrators Manage users, volunteers and groups within their designated offices based on office codes (OIP). Restrictions: managing offices, managing coordinator email, viewing administrators, managing work activities, viewing volunteer 4000-hour reports, viewing Year-End reports, viewing MLRA Office/Volunteer reports.	(5) Volunteers Can only enter their own time as well as update their contact information. Can only enter time for offices they are assigned to. Restrictions: All. Can only manage their own time and record. Cannot manage or view any other information or users.
NOTE: Figure 5 explanation: National Administrators transcend all users, reports, and functions. The numbers in brackets (1), refer to the account authority level, 1 being the highest and 5 the lowest. Each level can manage other users at the same level or below, with the exception that level 5 (Volunteers) can only manage their own accounts; they cannot manage other volunteers. Additionally, the NRCSv system includes a Regional Administrator role. This role would be directly below the National Administrator. The Regional Administrator role is NOT in use; it is reserved for possible future use. Special Volunteer Role Note: The NRCS staff create volunteer roles and assign workstations (OIP) for volunteers. Volunteers do not directly create their own accounts. Additionally, the NRCS enters time for MOST volunteers.

Based on the primary role-based functionality of the NRCSv application, data structure and data relationships are key to functionality and performance of the application and user interface. The following data structures have been created in the Volunteer.gov database for the NRCSv application:

• Data elements/names
• Data types/length
• Data descriptions

At the bottom of each data table, please see important notes relative to that table. Each of the following data tables represents the actual tables in the NRCSv database.

Table 3: Data Table: Users

SQL Name: VT_Users
#	Data Name	Data Type/Length	Description
1	VTID	int pk	Primary key, auto increment
2	userID		user ID (generally email address)
3	PWD		password, SHA 512 HASH REDACTED
4	fname		user first name
5	lname		user last name
6	email		email address
7	phone	nvarchar 50	phone
8	street1	nvarchar 150	street address line 1
9	street2	nvarchar 150	street address line 2
10	street3	nvarchar 150	street address line 3
11	city	nvarchar 100	user city
12	state	char 2	user state
13	zip	nvarchar 10	user zip code
14	country	char 2	no longer used for NRCS
15	gender	char 1	gender
16	dob	nvarchar 20	no longer used for NRCS
17	dateCreated	smalldatetime	account creation date
18	status	char 10	1=active 0=archived
19	workSites	nvarchar 4000	no longer used for NRCS
20	adminLevel	int	user access level (1)
21	partner	nvarchar 50	agency (default NRCS)
22	regionName	nvarchar 50	no longer used for NRCS
23	areaName	nvarchar 150	no longer used for NRCS
24	officeName	nvarchar 4000	comma separated list of work sites (OIP)
25	groupName	nvarchar 250	no longer used for NRCS
26	bgCheck	bit	user/volunteer background check 1=yes 0=noe
27	student	bit	is a student 1=yes 0=no
28	international	bit	is international 1=yes 0=no
29	hosted	bit	hosted volunteer 1=yes 0=no
30	TempPassword		temporary password SHA HASH 512
31	TPWexpire	datetime	temporary password expiration date/time
Table Notes (VT_Users) Discussion: several data items in this table were previously used by non-NRCS volunteer tracking applications on Volunteer.gov. These data items are listed above in gray background; they are not used in the NRCSv application. Table Color Key Primary keys Foreign keys Obsolete data Redacted data (1) User access levels 6 National Administrator Highest Level 5 National Administrator 4 State Administrator 3 Area Administrator 2 Office Administrator 0 Volunteer Lowest Level

Table 4: Data Table: Work Activities

SQL Name: vt_wa
#	Data Name	Data Type/Length	Description
1	WAID	int pk	Primary key, auto increment
2	wactivity	nvarchar 400	work activity name
3	wstatus	bit	work activity status 1=display 0=do not display
Table Notes (vt_wa) Discussion: The vt_wa table includes work activities that are displayed for volunteer time sheets. These are editable by national administrators. Table Color Key Primary keys Foreign keys Obsolete data Redacted data

Table 5: Data Table: Favorite Reports

SQL Name: vtFav
#	Data Name	Data Type/Length	Description
1	FVID	int pk	Primary key, auto increment
2	VTID	int fk	link to user ID table
3	sDate	smallDateTime	start date for report
4	eDate	smallDateTime	end date for report
5	OfficeName	nvarchar 1000	comma separated list of office names (OIP)
6	FavName	nvarchar 250	name of favorite report
7	FavLink	nvarchar 250	link to report type
8	vType	nvarchar 100	type of volunteer for custom report 6
9	DateAdded	smallDateTime	date favorite report added/updated (not implemented)
Table Notes (vtFav) Discussion: The vtFav table includes links and report parameters for custom reports generated by users and saved to their favorite list. Table Color Key Primary keys Foreign keys Obsolete data Redacted data

Table 6: Data Table: Groups

SQL Name: vtGroups
#	Data Name	Data Type/Length	Description
1	GID	int pk	Primary key, auto increment
2	state	nvarchar25	group state
3	groupName	nvarchar250	group name
4	nationalG	bit	no longer used by NRCS
5	regionName	nvarchar25	default National (otherwise, not used)
6	areaName	nvarchar50	no longer used by NRCS
7	officeName	nvarchar50	OIP number to which an office group is associated
8	leaderFName	nvarchar100	group leader first name
9	leaderLName	nvarchar100	group leader last name
10	leaderEmail	nvarchar150	group leader email address
11	leaderPhone	nvarchar25	group leader phone number
12	dateAdded	smalldatetime	date group added
13	dateUpdated	smalldatetime	date group updated
14	archived	bit	is group archived 0=no 1=yes
15	recurring	bit	recurring group =1, one-time group =0
16	leaderAdd1	nvarchar50	group leader address line 1
17	leaderAdd2	nvarchar50	group leader address line 2
18	leaderCity	nvarchar50	group leader city
19	leaderState	nvarchar2	group leader state
20	leaderZip	nvarchar10	group leader zip code
Table Notes (vtGroups) Discussion: The vtGroups table includes all the specific information about volunteer group within the NRCSv application. Table Color Key Primary keys Foreign keys Obsolete data Redacted data

Table 7: Data Table: Group Time

SQL Name: vtGroups
#	Data Name	Data Type/Length	Description
1	GGID	int pk	Primary key, auto increment
2	GID	int fk	foreign key, link from the Group Table
3	GUID	int fk	foreign key, link from Group Users table, 0 for One-time group
4	DateWorked	smallDateTime	date worked
5	hoursWorked	float	hours worked
6	locationName	nvarchar250	no longer used by NRCS
7	trainingState	Char2	State where training occurred
8	dateEntered	smallDateTime	date time was entered
9	activityWorked	nvarchar100	activity worked
10	groupNumber	float	number in group (0 if recurring, number if One-time group)
Table Notes (vtGroupTime) Discussion: The vtGroupTime table links through shared foreign keys to the vtGroups table via the GID key and the vtMembers table via the GUID key. Table Color Key Primary keys Foreign keys Obsolete data Redacted data

Table 8: Data Table: Group Members

SQL Name: vtMembers
#	Data Name	Data Type/Length	Description
1	GUID	int pk	Primary key, auto increment
2	GID	int fk	foreign key, link from the Group Table
3	vtMemberFname	nvarchar50	group member first name
4	vtMemberLname	nvarchar50	group member last name
5	vtMemberEmail	nvarchar150	group member email address
6	vtMemberPhone	nvarchar50	group member phone number
7	dateAdded	smallDateTime	date group member added
8	dateUpdated	smallDateTime	date group member last updated
9	archived	bit	is member archived (1=yes 0=no)
Table Notes (vtMembers) Discussion: The vtMembers table links through a shared foreign key to the vtGroups table via the GID key. This table includes group members time and contact information. It should be noted that group members are added via NRCS staff and do NOT have access to this application. Also, this group members table is for Recurring Groups only. One-time groups do not include a listing of names, only a listing of total members and total hours and date/work location. Table Color Key Primary keys Foreign keys Obsolete data Redacted data

Table 9: Data Table: Volunteer Time

SQL Name: myTime
#	Data Name	Data Type/Length	Description
1	TID	int pk	Primary key, auto increment
2	ba	nvarchar500	Office Name from NRCSOIP table
3	AID	int fk	Foreign key, link from NRCSOIP table
4	time1	float	hours time entry for Sunday
5	time2	float	hours time entry for Monday
6	time3	float	hours time entry for Tuesday
7	time4	float	hours time entry for Wednesday
8	time5	float	hours time entry for Thursday
9	time6	float	hours time entry for Friday
10	time7	float	hours time entry for Saturday
11	comments	nvarchar500	work activity
12	week	smalldatetime	week start (Sunday) for time entry
13	eid	int	Foreign key, link to VT_Users table
14	myCompany	nvarchar200	volunteer coordinator (administrator email address
15	tdate	nvarchar15	date time was entered updated
16	reg	float	total hours worked for period (week)
17	notes	nvarchar25	Agency (default NRCS)
18	verify	bit	has time been verified 1=yes 0=no
19	volState	char2	state volunteer activity occurred
20	verifyBy	nvarchar150	time verified by (administrator name)
21	verifyDate	smalldatetime	date time was verified
22	AwardType	Nvarchar100	not used by NRCS
23	AwardDate	smalldatetime	not used by NRCS
24	Award	bit	not used by NRCS
Table Notes (myTime) Discussion: The myTimes table links through a shared foreign key to the VT_Users table via the EID key and the NRCSOIP table (work locations) table through the AID key. Time is recorded on a weekly timesheet from Sunday—Saturday for a given week. This table includes volunteer hours for individual volunteers, separate from the Group Timetable. Table Color Key Primary keys Foreign keys Obsolete data Redacted data

Table 10: Data Table: NRCS OIP (Offices)

SQL Name: NRCSOIP
#	Data Name	Data Type/Length	Description
1	NRCSID	int pk	Primary key, auto increment
2	Address	nvarchar255	OIP street address
3	Agency	nvarchar255	agency name (NRCS)
4	City	nvarchar255	OIP city address
5	OfficeName	nvarchar255	OIP office name
6	OfficeType	nvarchar255	OIP office type
7	OIP	float	numeric OIP number supplied by NRCS
8	SiteID	float	numeric site number supplied by NRCS (not used)
9	SiteName	nvarchar255	site-specific office name
10	State	nvarchar255	OIP state address
11	ZipCode	nvarchar255	OIP zip code address
12	MarkDel	int	is OIP archived (1=yes, 0=no)
13	cEmail	nvarchar150	email address of coordinator for OIP
14	nationalGroup	int	is national office (1=yes, 0=no)
Table Notes (NRCSOIP) Discussion: The NRCSOIP table includes information about each NRCS office. This table was supplied by the NRCS. The table is editable by National Administrators. Table Color Key Primary keys Foreign keys Obsolete data Redacted data

The NRCSv application includes one ColdFusion scheduler task configured in the ColdFusion administrator as follows:

Table 11: Application Scheduler Table

Schedule Name	File Name	Frequency	Details
Get NRCS Hours	SCHHours.cfm	Daily 2:00 AM EST	Generates a query of individual volunteer and group volunteer counts per state comprehensive of the entire application time frame. This query is then written to a text file (nrcsvol.txt). This text file is then included in the charts/USA.cfm chart which is displayed on the home page.

The NRCSv application includes several JavaScript files and associated “helper” files for document formatting and functionality. Table #12 below provides a brief explanation of these files:

Table 12: Library Files Explanation

File Name	Location	Brief Explanation
checker.js	/library	checks for password integrity for account creation
dateCheck.js	/library	validates dates entered into the reports start/end date fields
fetchForm.js	/library	asynchronous AJAX form submission
fetchNew.js	/library	asynchronous dynamic AJAX URL submission
hover.cfm	/library	CFM template which creates a hover effect for help
Menu.js	/library	menu display/formatting
scrollMe.js	/library	creates a floating DIV object (used in Calendar on Groups Page)
sortable.js	/library	creates a clickable/sortable data table based on table columns
states.cfm	/library	converts State abbreviations into corresponding state full name
fusioncharts.js	../../fusioncharts	creates maps/charts for display

Examples of the FusionCharts™ dynamically generated charts and maps are displayed below in Figures #6 and #7 for reference.

Figure 6: Interactive Volunteer Count Map

Figure 7: Interactive Group Time Chart

The NRCSv app was developed under contract between the USDA NRCS and eSpherical.com, Inc. Contact information for the developer is provided below.
